2016 Jeep Grand Cherokee Transmission Fluid Dipstick Location Guide

Finding the transmission fluid dipstick in a 2016 Jeep Grand Cherokee can be confusing, especially for beginners. This is not like older vehicles where you simply open the hood and spot the dipstick right away. For many, checking transmission fluid is a basic task, but manufacturers sometimes make it more complicated. This article is designed to help you locate the dipstick, understand why it matters, and learn how to check fluid levels easily. If you are new to car maintenance, you will find clear steps and practical advice here.

Why Transmission Fluid Matters

Transmission fluid is vital for your Jeep’s performance. It lubricates moving parts, prevents overheating, and ensures smooth gear changes. If the fluid is too low or dirty, your car may have problems such as:

• Hard shifting
• Slipping gears
• Strange noises
• Transmission damage

Jeep recommends checking fluid regularly, but the process is not as simple as it used to be. Knowing where the dipstick is and how to use it saves you money and prevents bigger issues.

The Unique Dipstick Location In The 2016 Jeep Grand Cherokee

Most people expect to find a transmission dipstick near the engine block, but Jeep changed this for the 2016 Grand Cherokee.

• The 2016 Grand Cherokee uses a sealed transmission system. This means there is no traditional dipstick.
• Instead, Jeep uses a dealer-only dipstick tool. Home users cannot check the fluid without special equipment.

Why Did Jeep Remove The Dipstick?

Jeep and other manufacturers started using sealed systems to:

• Reduce owner mistakes (overfilling or using the wrong fluid)
• Lower maintenance needs
• Improve reliability

For beginners, this means you cannot just pull out a dipstick and check levels. The transmission is designed to be checked only by mechanics or with special tools.

Where Is The Dipstick Port?

Even though there is no visible dipstick, there is a port where the dipstick tool can be inserted.

• The dipstick port is found at the back of the engine, near the firewall.
• It is a small tube labeled “Transmission Fluid” but usually has a cap marked “Dealer Only.”
• You may need to remove the engine cover to see the port clearly.

Step-by-step Guide To Locating The Dipstick Port

• Let the engine cool completely.
• Open the hood and look towards the rear of the engine bay.
• Find a small tube capped with a yellow or black lid marked “Transmission.”
• The port is near the driver’s side, close to the firewall.

Many owners miss this because it is hidden and covered. The cap often says “Dealer Only,” warning not to open it without proper tools.

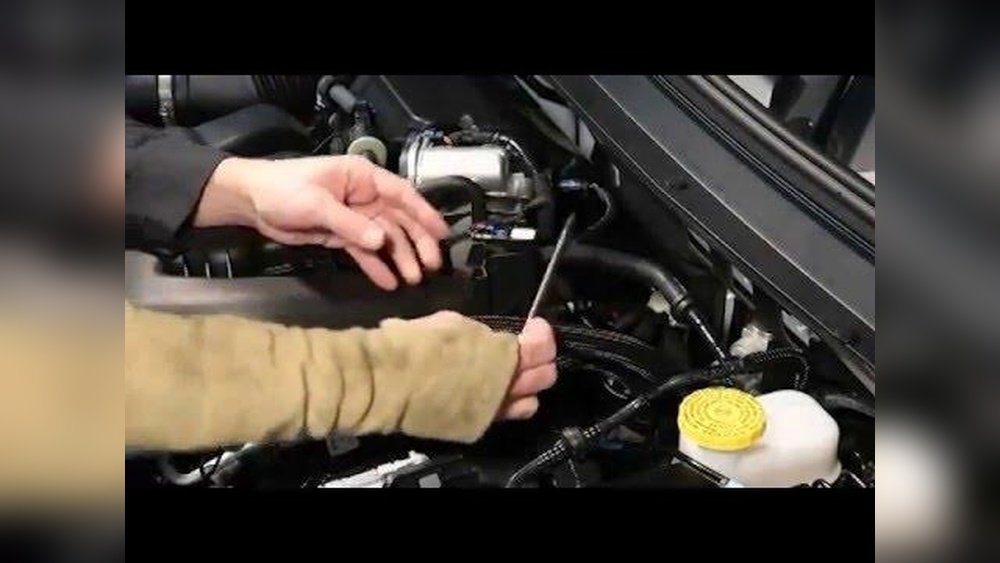

How To Check Transmission Fluid

If you do not have the dealer tool, you cannot check the fluid yourself. But here is how professionals do it:

• Remove the cap from the dipstick port.
• Insert the dealer dipstick tool (part number 9336).
• Start the engine and let it reach normal temperature.
• Check the fluid level using the tool’s marks.

Can You Buy The Tool?

Some auto parts stores sell aftermarket dipstick tools. But using them requires:

• Accurate measurement
• Knowledge of the correct fluid temperature
• Understanding fluid expansion

If you are not experienced, mistakes can lead to transmission damage. Most people should let a mechanic check the fluid.

Credit: www.youtube.com

Common Mistakes Beginners Make

Many beginners try to:

• Use the wrong fluid
• Open the port without the right tool
• Overfill the transmission
• Check fluid when cold

These mistakes can cause expensive repairs. Always use ATF+4 fluid, as Jeep recommends. Never add fluid unless you are sure it is needed.

Data Comparison: Sealed Vs Traditional Transmissions

Here’s a quick comparison of sealed and traditional transmission systems.

Practical Example: What Happens If Fluid Is Low?

Suppose your Jeep starts shifting roughly or hesitating. You suspect low transmission fluid, but you cannot check it yourself. If you ignore the signs:

• The transmission can overheat.
• Gears may slip, risking safety.
• Repairs can cost $2,000–$4,000.

If you bring the car to a dealer, they will use the dipstick tool, measure fluid at the correct temperature, and add ATF+4 if needed. This is safer and prevents bigger issues.

Transmission Fluid Change Interval

Jeep recommends changing transmission fluid every 60,000 miles under normal use. For tough conditions (towing, hot climate), change it more often.

• Always use Jeep-approved fluid.
• Never mix brands or types.
• A fluid change costs about $250–$400 at a dealership.

Changing fluid on your own is possible but risky. Sealed systems are sensitive, and mistakes can be expensive.

How To Avoid Transmission Problems

If you want your Jeep Grand Cherokee to last:

• Watch for warning signs: Rough shifting, leaks, burning smell.
• Have the fluid checked at every oil change (even if not required).
• Use only ATF+4 fluid.
• Visit a trusted dealer or mechanic.

Many beginners skip transmission checks, but this leads to bigger problems later. Make it part of your regular maintenance routine.

Data Table: Transmission Fluid Specifications

Below are key details for the 2016 Jeep Grand Cherokee transmission fluid.

Credit: www.jeepcherokeeclub.com

Signs Of Bad Transmission Fluid

It’s important to know when fluid is bad, even if you cannot check it yourself.

• Dark color instead of bright red
• Burning smell
• Metal shavings in fluid
• Foaming or bubbles

Any of these signs mean you should visit a mechanic soon.

What If You Want To Diy?

Some experienced owners try to check or change the fluid themselves. Here are practical tips:

• Buy the correct dipstick tool (9336).
• Use a scan tool to measure fluid temperature.
• Never guess the fluid level.
• Only use ATF+4.
• If unsure, let a professional do it.

Why Professional Service Is Safer

Dealers have:

• Proper tools
• Trained technicians
• Access to Jeep guidelines

This reduces risk and ensures your Jeep stays reliable. For most beginners, dealer service is best.

Comparison Table: Dealer Vs Diy Fluid Check

Here’s a simple side-by-side data table.

Useful External Resource

For more technical details and maintenance schedules, see the official Jeep Owner’s Manuals.

Frequently Asked Questions

Where Is The Transmission Fluid Dipstick On The 2016 Jeep Grand Cherokee?

There is no traditional dipstick. The port for checking fluid is at the back of the engine, near the firewall, marked “Dealer Only.” You need a special tool to check the fluid.

Can I Check Transmission Fluid Myself?

Most owners cannot check fluid themselves. You need a dealer dipstick tool and must measure fluid at the correct temperature. It’s safer to let a mechanic do it.

What Type Of Transmission Fluid Does The 2016 Jeep Grand Cherokee Use?

The only recommended fluid is ATF+4. Using other types may damage the transmission or void the warranty.

How Often Should I Change Transmission Fluid?

Jeep suggests changing fluid every 60,000 miles for normal driving. For towing or harsh conditions, change it sooner.

What Happens If I Use The Wrong Fluid?

Using the wrong fluid can cause shifting problems, increase wear, and may void your warranty. Always use ATF+4, as Jeep recommends.

Keeping your 2016 Jeep Grand Cherokee in top shape is easier when you know where the transmission fluid dipstick port is and understand sealed systems. While you cannot check fluid as easily as older cars, knowing the right steps and avoiding common mistakes will help your Jeep last longer. For most beginners, dealer service is the safest choice. Regular checks and proper fluid are key to reliable performance.
