2011 Jeep Grand Cherokee Passenger Side Blend Door Actuator Fix

If you own a 2011 Jeep Grand Cherokee, you might have faced problems with your car’s heating or air conditioning on the passenger side. Often, the cause is a small but important part called the blend door actuator. When this part fails, it can lead to uneven temperatures, odd noises, or even a lack of air flow. Many Jeep owners deal with this issue, and fixing it can make your driving experience much better.

In this article, you’ll learn what a blend door actuator does, why it fails, how to spot problems, and what you can do about it. The goal is to give you clear, step-by-step guidance—even if you’re not a car expert.

What Is The Passenger Side Blend Door Actuator?

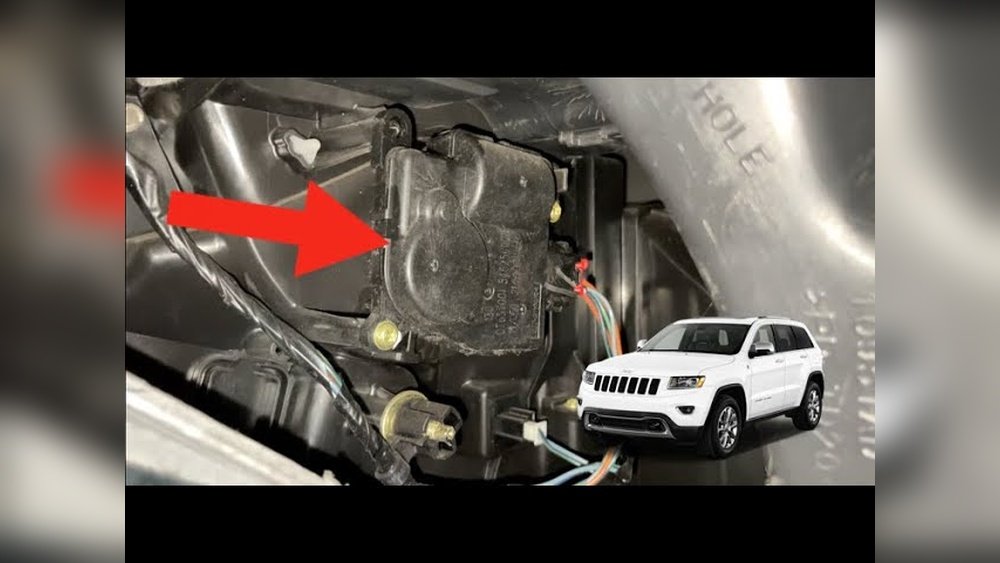

The blend door actuator is a small electric motor in your Jeep’s HVAC (heating, ventilation, and air conditioning) system. It controls the blend door, which decides how much hot or cold air goes into the cabin. For the passenger side, this actuator helps set the right temperature for whoever is sitting next to the driver.

When you use your climate controls to adjust temperature, the actuator moves the blend door to mix warm and cool air. If the actuator fails, you might get only hot air, only cold air, or nothing at all.

Key facts:

• The 2011 Grand Cherokee uses separate actuators for driver and passenger sides.
• The actuator is hidden behind the glove box on the passenger side.

Common Symptoms Of A Bad Blend Door Actuator

It’s not always easy to tell if the blend door actuator is failing. However, these are the most common signs:

• Temperature stuck: No matter what you set, the passenger side stays hot or cold.
• Clicking or tapping noise: You hear a repeated sound behind the dashboard, especially when starting the car or adjusting the temperature.
• Weak or no airflow: Air comes out, but it’s not the temperature you want.
• Uneven temperatures: Driver and passenger sides feel very different, even with the same settings.

Non-obvious insight: Sometimes the clicking noise is only heard for a few seconds when you start the car. Many people ignore this, but it’s an early warning.

Why Does The Blend Door Actuator Fail?

The main reasons for failure in the 2011 Jeep Grand Cherokee are:

• Worn plastic gears: Inside the actuator, small gears move the blend door. Over time, these can break or wear out.
• Electrical issues: The motor or circuit may fail due to age or water leaks.
• Blocked blend door: Sometimes the door itself sticks, causing the actuator to fail from overwork.

Important note: Using the climate system heavily, like in very hot or cold weather, can wear out the actuator faster.

Diagnosing The Problem

If you suspect a bad blend door actuator, here are steps you can take before going to a mechanic:

• Listen for noises: With the engine on, switch between hot and cold air. Listen for clicking or tapping near the glove box.
• Test air flow: Set the temperature on both sides. If the passenger side doesn’t change, it’s likely the actuator.
• Check error codes: Some scan tools can read HVAC error codes. These can confirm actuator problems.

Example Scenario:

John owns a 2011 Grand Cherokee. He noticed the passenger side blows only cold air, and there’s a light tapping noise. After switching between temperatures, nothing changed. Using a simple OBD-II scan tool, he saw a “B12B6” code—pointing to a blend door actuator issue.

Credit: www.youtube.com

How To Replace The Passenger Side Blend Door Actuator

If you’re a beginner, replacing the blend door actuator can be a bit tricky, but it’s possible with patience. Here’s how you can do it:

Tools And Parts Needed

• Phillips and flathead screwdrivers
• 7mm socket wrench
• Flashlight
• Replacement blend door actuator (OEM or quality aftermarket)
• Gloves (optional)

Step-by-step Instructions

• Disconnect battery: For safety, always disconnect the negative battery terminal.
• Remove the glove box:
• Open the glove box.
• Push the sides inward to release the stops.
• Let the glove box hang down or remove it completely.
• Locate the actuator:
• Look above the blower motor (behind where the glove box was).
• The actuator is small and rectangular, with wiring attached.
• Unplug the wiring harness: Press the tab and gently pull the connector out.
• Remove actuator screws:
• Use the 7mm socket to remove two or three screws holding the actuator.
• Keep the screws in a safe place.
• Take out the old actuator: Pull it out gently.
• Install the new actuator:
• Line up the actuator with the blend door shaft.
• Secure with screws.
• Plug in the wiring harness.
• Test before reassembly: Reconnect the battery and test the new actuator by changing the temperature controls.
• Reinstall the glove box.

Tip: If the actuator doesn’t move during testing, double-check the wiring and placement.

Approximate Time: 45–60 Minutes

Cost Estimate:

• Blend door actuator: $30–$80 (aftermarket); $80–$120 (OEM)
• Labor (if done by mechanic): $150–$250

Comparison: Oem Vs Aftermarket Actuator

Choosing between OEM (original equipment manufacturer) and aftermarket can be confusing. Here’s a quick comparison to help you decide:

Non-obvious insight: Some aftermarket actuators may work fine at first but develop the same problems in a few months. Always check reviews before buying.

Preventing Future Blend Door Actuator Problems

While you can’t always prevent actuator failure, there are ways to make it last longer:

• Avoid forcing the controls: Don’t switch quickly between max hot and max cold.
• Run the climate system regularly: Use the system in all seasons to keep parts moving.
• Check for leaks: Water leaks near the dash can damage the actuator.
• Use quality replacement parts: Cheap parts often wear out faster.

Common Mistakes When Replacing The Actuator

Beginners often make these errors:

• Forgetting to disconnect the battery: This can cause electrical shorts.
• Losing screws: Always keep hardware in a small tray.
• Forcing the actuator: If it doesn’t fit easily, something may be misaligned.
• Not testing before reassembly: You may have to repeat all the steps if it’s not working.

Other Causes Of Hvac Problems

If replacing the actuator does not solve your issue, consider these possibilities:

• Faulty climate control panel: Rare, but sometimes the controls themselves fail.
• Blown fuse: Check your Jeep’s fuse box.
• Stuck blend door: The door may be jammed due to debris or broken parts.

Data: Blend Door Actuator Failure Rates

A survey of Jeep forums and repair shops shows:

The 2011 model year has a higher failure rate, likely due to older plastic gears and more miles on the road.

Credit: www.jeepgarage.org

Real-world Example

Maria bought a used 2011 Jeep Grand Cherokee. After a few weeks, the passenger side only blew hot air, and she heard clicking from the dash. She followed an online guide and changed the blend door actuator herself. The total cost was $55 for the part, and it took her about an hour.

Now, both sides of her Jeep cool and heat properly.

When To See A Mechanic

If you’re uncomfortable working under the dash or don’t have the right tools, it’s best to visit a professional. Some mechanics specialize in Jeep HVAC repairs and can diagnose issues quickly. Expect to pay more for labor, but you’ll have peace of mind.

Where To Buy A Blend Door Actuator

You can find replacement actuators at:

• Jeep dealerships (OEM parts)
• Auto parts stores (AutoZone, O’Reilly, Advance Auto Parts)
• Online retailers (Amazon, RockAuto, eBay)

Tip: Always match the part number before buying.

For official Jeep parts and more details, visit the Mopar parts site.

Frequently Asked Questions

How Do I Know If My 2011 Grand Cherokee Needs A New Passenger Side Blend Door Actuator?

If the passenger side stays hot or cold, makes a clicking noise, or doesn’t respond to temperature changes, the actuator is likely bad.

Can I Drive My Jeep With A Bad Blend Door Actuator?

Yes, your Jeep will still drive, but the passenger may not get the right air temperature, making trips uncomfortable.

How Long Does It Take To Replace The Actuator?

For beginners, set aside about 1 hour. If you’re experienced, it might take 30–45 minutes.

Is It Okay To Use An Aftermarket Blend Door Actuator?

Yes, many work well, but choose a trusted brand and check reviews for your specific Jeep model.

Do I Need To Reprogram The Hvac System After Replacing The Actuator?

Usually, no. The system should reset itself when you turn the car on. If problems continue, a simple battery disconnect or recalibration procedure may help.

Fixing your 2011 Jeep Grand Cherokee passenger side blend door actuator can make a big difference in comfort. With a little care and patience, most people can handle this repair at home and save money.
