2001 Jeep Cherokee Transmission Fluid Capacity: Complete Guide

If you drive a 2001 Jeep Cherokee, knowing the right transmission fluid capacity is important. Using the correct amount keeps your transmission healthy, helps prevent problems, and ensures smooth shifting. Many beginners feel confused about fluid types and amounts, but this guide makes it simple. Here, you’ll learn exactly how much fluid you need, how to change it, and common mistakes to avoid. Whether you do basic maintenance yourself or just want to understand your vehicle better, you’ll find practical advice and clear answers. Plus, you’ll pick up helpful tips that most first-timers miss, so you can keep your Jeep running smoothly and avoid expensive repairs.

Understanding Transmission Fluid Capacity

When talking about transmission fluid capacity, it means the total amount of fluid your transmission holds. For the 2001 Jeep Cherokee, this depends on the specific transmission type installed.

• Most 2001 Jeep Cherokees have the AW4 automatic transmission
• A few models use the AX15 manual transmission

Each transmission has its own fluid requirements. Using too little or too much fluid can cause serious issues like slipping, overheating, or even damage. Many drivers don’t realize that the “capacity” number can be different depending on what service you’re doing.

For example, if you only drain the pan, you won’t remove all the old fluid, since some stays inside the torque converter or other parts. That’s why a full “dry” refill needs more fluid than a basic fluid change.

Another thing to note is that if your Jeep has had a transmission swap or modification, you should always double-check your transmission type before buying fluid. It’s easy to assume, but past owners may have changed parts.

2001 Jeep Cherokee Transmission Fluid Capacity

Let’s look at the numbers for both main transmission types in the 2001 Jeep Cherokee:

• AW4 Automatic Transmission
• Pan drop: About 4 quarts (most common service)
• Complete dry fill: Up to 8.5 quarts
• AX15 Manual Transmission
• Total capacity: About 3.3 quarts

Most owners only need the pan drop capacity when doing routine maintenance. If you’re flushing the transmission or replacing it, you’ll need the dry fill amount. Always double-check the amount before starting, so you don’t run out mid-job. It’s smart to have a little extra fluid on hand, since some fluid may be lost during spills or small leaks.

Credit: www.carcarekiosk.com

Why Transmission Fluid Matters

Transmission fluid is more than just oil. It:

• Cools the transmission during operation
• Lubricates moving parts
• Helps with gear shifting
• Prevents rust and corrosion

A lot of beginners don’t realize that transmission fluid also acts as a hydraulic fluid in automatics. That means it helps create the pressure needed for the transmission to shift gears. Low or dirty fluid can cause harsh shifting, slipping, or even complete failure. Using the right amount and type is critical.

Also, if your Jeep sits unused for long periods, fluid can break down or collect moisture. This makes regular checks even more important. If you drive in hot weather, heavy traffic, or tow trailers, your fluid can get dirty faster and should be checked more often.

How To Check Transmission Fluid

Checking your Jeep’s transmission fluid is simple, but a few steps must be followed:

• Park on a level surface.
• Start the engine and let it warm up.
• With the engine running and transmission in “Park,” pull out the dipstick.
• Wipe it clean, re-insert, and pull out again.
• Check the level against the “Full” and “Add” marks.

For manual transmissions, there’s usually a fill plug. Remove the plug and check if fluid is at the bottom of the hole. If you can touch fluid with your finger, it’s full.

A tip: Always check the automatic transmission fluid with the engine running and warmed up. Some Jeep models may require the transmission to be in Neutral, so check your owner’s manual to be sure. If you check the level when the engine is cold, you may think it’s low and accidentally overfill.

Signs Of Low Transmission Fluid

• Delayed or rough gear changes
• Transmission slipping
• Unusual noises
• Burning smell

If you notice these symptoms, don’t just keep driving. Low fluid can cause bigger problems fast. Always check after a fluid change or if you notice any of these symptoms. Sometimes, leaks can be slow and hard to see, so it’s good to check your fluid level every few months.

Credit: jeep-club.co.uk

Choosing The Right Transmission Fluid

Using the correct fluid is essential. For the AW4 automatic, use ATF+4 or Dexron III. For the AX15 manual, use either MTF or 75W-90 gear oil.

Buying the wrong fluid is a common mistake. Some fluids look similar on the shelf, but using the wrong one can lead to poor shifting or even internal damage. Always check your owner’s manual or look for the label on the transmission pan.

Sometimes, you’ll see “universal” fluids at auto parts stores. While some of these can work, it’s much safer to use the specific type recommended for your transmission. If you’re unsure, ask the store clerk or a mechanic.

If you mix up fluids, don’t panic. Drain and refill as soon as possible to avoid long-term problems.

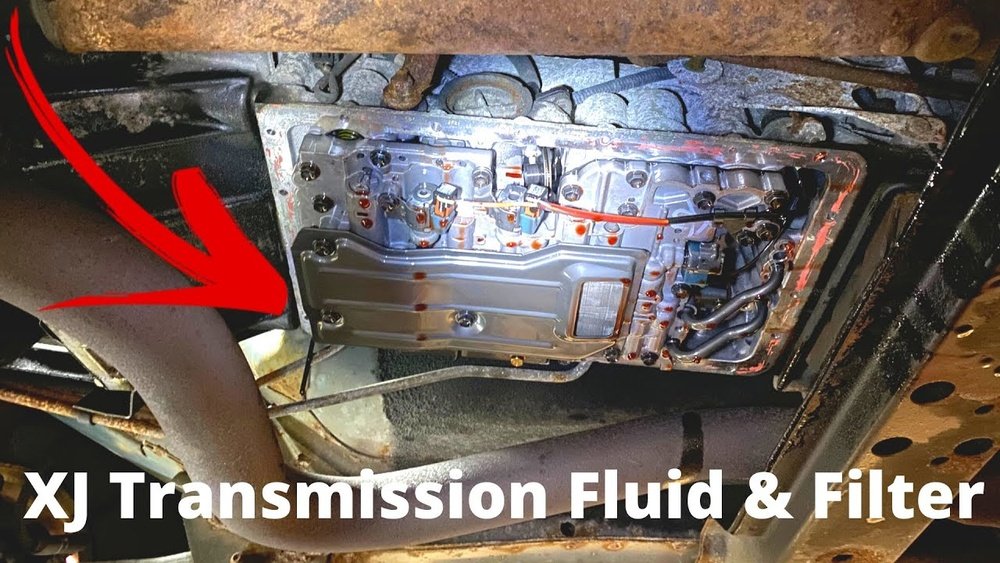

How To Change Transmission Fluid

Changing transmission fluid is not hard, but beginners often miss key steps. Here’s a simple guide:

Automatic Transmission (aw4)

• Place a drain pan under the transmission.
• Remove the transmission pan bolts.
• Let the old fluid drain out.
• Replace the transmission filter (if needed).
• Clean the pan and magnet.
• Reinstall the pan and tighten bolts.
• Refill with 4 quarts of ATF+4 or Dexron III.
• Start engine, run through all gears, and check level.

Take your time when cleaning the pan. The magnet inside catches metal dust from normal wear, but if you see large metal chunks, that’s a warning sign of bigger problems. Also, don’t overtighten the pan bolts—they can strip easily.

Manual Transmission (ax15)

• Remove the fill plug.
• Place a drain pan under the transmission.
• Remove the drain plug and let fluid drain.
• Reinstall drain plug and tighten.
• Fill with 3.3 quarts of 75W-90 gear oil or MTF.
• Replace the fill plug.

Filling a manual transmission can be tricky because the fill hole is on the side. A small hand pump or flexible hose makes this much easier and helps avoid spills.

Practical Tips

• Use a funnel to avoid spills.
• Always use new gaskets.
• Clean the magnet; it traps metal particles.
• Dispose of old fluid properly.

Never pour old transmission fluid down the drain or on the ground. Most auto parts stores accept used oil and transmission fluid for recycling.

Common Mistakes Beginners Make

Many beginners face issues during fluid changes. Avoid these mistakes:

• Using the wrong fluid type
• Overfilling or underfilling
• Not replacing the filter (for automatics)
• Forgetting to clean the magnet
• Not checking fluid level after change

Overfilling is as dangerous as running low. It can cause foaming, poor shifting, and damage. Another common mistake is not tightening bolts in a crisscross pattern—this helps the pan seal evenly and prevents leaks. Finally, some people forget to check for leaks after finishing the job. Always look under your Jeep for drips after your first drive.

Example: Aw4 Fluid Change Step-by-step

Here’s a simple example for a pan drop fluid change on the AW4 automatic:

• Buy 4 quarts of ATF+4 or Dexron III.
• Get a new transmission pan gasket and filter.
• Use basic tools: Socket wrench, screwdriver, drain pan, funnel.
• Remove pan bolts, drain fluid, replace filter, clean pan/magnet.
• Install new gasket, bolt pan back, refill with fluid.
• Start engine, shift through gears, check fluid level, add if needed.

This process takes about 45–60 minutes for beginners.

A helpful tip: If you’re not sure how much fluid to add, start with 3 quarts, check the dipstick, and add more slowly. It’s easier to add than to remove extra fluid.

Transmission Fluid Change Interval

For the 2001 Jeep Cherokee, change fluid every 30,000 miles (automatic) or 60,000 miles (manual). If you drive in harsh conditions (heavy towing, off-road), change fluid more often.

Driving with old fluid can cause:

• Increased wear
• Overheating
• Poor performance

Many drivers forget that “lifetime” transmission fluid is a myth, especially on older vehicles. Even if your transmission feels fine, dirty fluid slowly damages internal parts. Setting a reminder or writing down the date of your last fluid change can help you stay on schedule.

Regular changes keep your transmission running smoothly.

Transmission Fluid Leak: What To Watch For

Leaks are common in older vehicles. Signs include:

• Red or brown puddles under your Jeep
• Fluid level dropping quickly
• Slipping or hard shifts

Most leaks come from the pan gasket, cooler lines, or seals. If you spot a leak, repair it quickly to avoid costly damage. Even a small leak can lead to big trouble if ignored. After a fluid change, always check the area under your Jeep for drips over the next few days.

A useful check: Place a piece of cardboard under your Jeep overnight to spot new leaks. If you see a spot, try to locate the source before it gets worse.

Credit: www.youtube.com

How Much Fluid Do You Need?

If you’re doing a pan drop, buy at least 4 quarts. For a full rebuild or dry fill, you’ll need up to 8.5 quarts (automatic) or 3.3 quarts (manual).

Buying a little extra is smart—sometimes you spill or need to top off. Fluid is affordable and easy to store. Leftover fluid can be used for future top-offs or emergencies.

If you plan to flush the transmission cooler lines, you may need even more fluid, so always check your service plan.

Comparison: Automatic Vs Manual Fluid Capacity

A quick comparison helps beginners understand differences:

Manual transmissions usually require less fluid and less frequent changes, but they’re just as important to maintain. Automatics need more fluid and more careful checking, especially after service.

Non-obvious Insights For Beginners

• Transmission fluid expands when hot. Always check fluid level when the engine is warm, not cold, to get an accurate reading.
• Changing fluid won’t fix major transmission problems. If your Jeep has serious shifting issues, a fluid change may help, but it’s not a cure for mechanical faults.
• Transmission fluid color is important. Good fluid is bright red (automatic) or clear/amber (manual). Dark or burnt-smelling fluid means it’s time to change.
• Save your old gasket as a backup. Sometimes, new gaskets can leak or not fit perfectly. Keeping your old one as a spare can be a lifesaver if you run into trouble.
• Label leftover fluid containers. If you have extra fluid after a change, label the bottle with the date and type. This helps you remember exactly what it is for your next top-off.

Trusted Resources

For more detailed specs or troubleshooting, visit the official Jeep service manuals or Jeep.com. You can also ask questions on Jeep forums, where experienced owners share tips and solutions.

Frequently Asked Questions

How Much Transmission Fluid Does A 2001 Jeep Cherokee Need?

For the AW4 automatic, a pan drop requires about 4 quarts. A full rebuild may need up to 8.5 quarts. For the AX15 manual, you’ll need 3.3 quarts.

What Type Of Transmission Fluid Should I Use?

Use ATF+4 or Dexron III for automatics. Use MTF or 75W-90 gear oil for manual transmissions. Always check your owner’s manual for the exact recommendation.

Can I Check Transmission Fluid When The Engine Is Cold?

It’s best to check when the engine is warm and running. Fluid expands when hot, so a cold check can be inaccurate.

How Often Should I Change Transmission Fluid?

Change automatic transmission fluid every 30,000 miles. Change manual transmission fluid every 60,000 miles. If you tow or drive off-road, change more often.

What Happens If I Overfill My Transmission?

Overfilling can cause foaming, poor shifting, and damage. Always use the recommended amount and check the level after adding fluid.

Taking care of your Jeep Cherokee’s transmission is easy once you know the basics. Using the correct fluid and amount, checking levels regularly, and avoiding common mistakes will keep your transmission reliable for years. With these beginner-friendly tips, you can feel confident maintaining your vehicle and enjoy smoother driving.

When in doubt, consult your manual or ask a trusted mechanic—your Jeep will thank you for it.
